NVIDIA-Nemotron-3-Ultra-550B on H200

This recipe is optimized for agentic code generation; see the agentic workloads section of the Models overview for the workload framing, and the GLM-5.2 and Qwen3-Coder-480B guides for the other models benchmarked against the same workload.

Overview

This guide deploys RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block on 8 H200 nodes, prefill/decode disaggregated into 6 prefill and 2 decode replicas to absorb the large ISL:OSL ratio of multi-turn agentic sessions (heavy prefill, lighter decode). The configuration layers the agentic optimizations onto disaggregated serving:

• P/D disaggregation so heavy prefill never stalls decode, stabilizing ITL.
• Disagg-aware, token-aware prefix-cache routing: the prefill profile keeps prefix groups on cache-warm endpoints with the prefix-cache affinity filter and picks by queued prefill token load; the decode profile picks the endpoint with the fewest active requests.
• KV cache offloading to CPU DRAM — 200 GiB per model server (~1.6 TB across the 8 replicas) — to extend the cacheable working set far beyond HBM for long, resumable sessions.
• FP8 block weights + FP8 KV cache to fit the ~563 GB of weights at TP=8 and leave KV headroom; the MoE is served with Expert Parallelism.
• VLLM_PREFIX_CACHE_RETENTION_INTERVAL=0 to raise multi-turn prefix-cache hit rates. This is enabled here because RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block is a Mamba-hybrid model (NemotronHForCausalLM); vLLM rejects the flag on full-attention models, so it is set per-deployment rather than in the baseline manifests.

🚧 This deployment uses development images (the endpoint-picker and the disaggregation routing sidecar) for the P/D-disaggregation scheduling plugins. Pin them to a release before relying on this in production.

Default Configuration

Parameter	Value
Model	RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block
Accelerator	NVIDIA H200 (8 nodes, 8 GPUs each)
Serving topology	P/D disaggregated — 6 prefill replicas, 2 decode replicas
TP size / EP size	TP=8, EP enabled
KV cache	FP8-quantized, with ~1.6 TB CPU offload (200 GiB/replica)

Supported Accelerators and Model Servers

This guide includes configurations for the following accelerator and model server combinations:

Accelerator	ACCELERATOR_TYPE	Served model	vLLM	Notes
NVIDIA H200	gpu	RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block	🟡 community	8 nodes × 8 H200 · P/D disaggregated, 6 prefill + 2 decode replicas × TP=8 · INFRA_PROVIDER: base (HuggingFace download), gke (model from a GCS bucket)

✅ validated: covered by a nightly E2E workflow · 🟡 community: maintained by the hardware vendor or community, not covered by nightly E2E · ❌ not supported: tracked in the linked issue · — no configuration.

Prerequisites

• Have the proper client tools installed on your local system to use this guide.

• Create a HuggingFace token and export it as HF_TOKEN in your shell.

• (Optional) Install the monitoring stack if you plan to enable Prometheus monitoring.

• (INFRA_PROVIDER=gke only) Copy the model to a Google Cloud Storage bucket the cluster can mount, as described in Downloading the Model to Your GCS Bucket.

Get the guide

Every command below runs from a local clone of the llm-d repository: the manifests, Helm values, and Kustomize overlays it applies live next to this guide. Set the branch and clone the repo (if you already have a checkout, skip this and run the remaining commands from inside it):

export BRANCH=main
git clone https://github.com/llm-d/llm-d.git && cd llm-d && git checkout ${BRANCH}

Configure the environment

Set the guide-specific environment variables:

export REPO_ROOT=$(realpath $(git rev-parse --show-toplevel))
export GUIDE_NAME=nemotron-3-ultra
export NAMESPACE=llm-d-nemotron-3-ultra
export MONITORING=false # options: false, true
export MONITORING_VALUES=
export ACCELERATOR_TYPE=gpu # options: gpu
export MODEL_SERVER=vllm # options: vllm
export INFRA_PROVIDER=base # options: base, gke
export MODEL=RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block # the model both overlays serve
source ${REPO_ROOT}/guides/env.sh # defines GAIE_VERSION, ROUTER_CHART_VERSION, router chart URLs, and CURL_TEST_IMAGE

Install the Gateway API Inference Extension CRDs:

# GAIE_URL is automatically calculated from GAIE_VERSION at ${REPO_ROOT}/guides/env.sh
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api-inference-extension/${GAIE_URL}/v1-manifests.yaml

Install the LeaderWorkerSet controller with the DisaggregatedSet API (skip if your cluster already runs LWS v0.11.1 or newer with enableDisaggregatedSet=true):

# helm upgrade never updates CRDs, so apply the chart's CRDs first (see LWS
# "Upgrade by Helm"); this upgrades them on clusters that run an older LWS.
helm pull oci://registry.k8s.io/lws/charts/lws --version=${LWS_VERSION} --untar
kubectl apply --server-side --force-conflicts -f lws/crds
helm upgrade --install lws oci://registry.k8s.io/lws/charts/lws \
  --version=${LWS_VERSION} \
  --namespace lws-system --create-namespace \
  --set enableDisaggregatedSet=true \
  --wait --timeout 300s

Create a target namespace for the installation:

kubectl create namespace ${NAMESPACE} --dry-run=client -o yaml | kubectl apply -f -

Create the llm-d-hf-token secret in your target namespace with the key HF_TOKEN matching a valid HuggingFace token to pull models:

kubectl create secret generic llm-d-hf-token \
  --from-literal="HF_TOKEN=${HF_TOKEN}" \
  --namespace "${NAMESPACE}" \
  --dry-run=client -o yaml | kubectl apply -f -

Installation Instructions

1. Deploy the llm-d Router

Prepare the paths to the helm values files for the llm-d router. This deployment uses the disaggregation-aware router values (router/nemotron-3-ultra.values.yaml), which run separate prefill and decode scheduling profiles:

# Paths to values files
export ROUTER_BASE_VALUES="${REPO_ROOT}/guides/recipes/router/base.values.yaml"
export ROUTER_VALUES="${REPO_ROOT}/guides/models/${GUIDE_NAME}/router/${GUIDE_NAME}.values.yaml"

(Optional) Enable Prometheus monitoring on the llm-d router by defining the helm values file (requires installing the monitoring stack mentioned in Prerequisites):

# only when MONITORING=true:
export MONITORING_VALUES="-f ${REPO_ROOT}/guides/recipes/router/features/monitoring.values.yaml"

Deploy the router in Standalone Mode, with an Envoy sidecar in front of the router. Keep the release name ${GUIDE_NAME}: the verification steps look up the ${GUIDE_NAME}-epp Service by that name. To front the router with a Kubernetes Gateway instead, see Gateway Mode in the Optimized Baseline.

helm install ${GUIDE_NAME} \
  ${ROUTER_STANDALONE_CHART} \
  -f ${ROUTER_BASE_VALUES} \
  ${MONITORING_VALUES} \
  -f ${ROUTER_VALUES} \
  -n ${NAMESPACE} --version ${ROUTER_CHART_VERSION}

2. Deploy the Model Server

note

This guide provides two ways to deploy the model server. The default one (INFRA_PROVIDER = base) is to download the RedHatAI/NVIDIA-Nemotron-3-Ultra-550B-A55B-FP8-block model from HuggingFace every time. However, the model is ~560GB in size. Downloading a model of this scale directly from HuggingFace can take over an hour, and because every deployment triggers a new download, it creates a significant bottleneck. To save time and accelerate the deployment process, we highly recommend saving the model to a Google Cloud Storage (GCS) bucket and accessing it directly from there. Please check the Readme for this suggested deployment.

Apply the Kustomize overlay for the Nemotron-3-Ultra H200 deployment:

kubectl apply -n ${NAMESPACE} \
  -k ${REPO_ROOT}/guides/models/${GUIDE_NAME}/modelserver/${ACCELERATOR_TYPE}/${MODEL_SERVER}/${INFRA_PROVIDER}/

This deploys one DisaggregatedSet (pd-disagg-vllm) with 6 prefill and 2 decode replicas. Wait for it to become available (model load is large; the startup probe allows about two hours):

kubectl wait --for=condition=Available disaggregatedset/pd-disagg-vllm -n ${NAMESPACE} --timeout=7200s

(Optional) Deploy the monitoring resources for model servers (requires installing the monitoring stack mentioned in Prerequisites):

# only when MONITORING=true:
kubectl apply -n ${NAMESPACE} -k ${REPO_ROOT}/guides/recipes/modelserver/components/monitoring-pd

Verification

1. Get the IP of the Proxy

export IP=$(kubectl get service ${GUIDE_NAME}-epp -n ${NAMESPACE} -o jsonpath='{.spec.clusterIP}')

2. Send Test Requests

Send a completion request from a temporary pod inside the cluster:

kubectl run curl-test --rm -i --restart=Never \
  --image=${CURL_TEST_IMAGE} \
  --namespace="${NAMESPACE}" \
  --env="IP=${IP}" \
  --env="MODEL=${MODEL}" \
  -- /bin/sh -c 'curl -sS -X POST "http://${IP}/v1/completions" -H "Content-Type: application/json" -d "{\"model\": \"${MODEL}\", \"prompt\": \"Explain how a simple agent loop works in 3 sentences.\"}"'

Check that the router reaches a model server that serves MODEL: the response must name the model and carry generated tokens:

# The router must reach a model server that serves MODEL and returns tokens
kubectl run serve-check --rm -i --restart=Never \
  --image=${CURL_TEST_IMAGE} \
  --namespace="${NAMESPACE}" \
  --env="IP=${IP}" \
  --env="MODEL=${MODEL}" \
  -- /bin/sh -c 'R=$(curl -sS -X POST "http://${IP}/v1/completions" -H "Content-Type: application/json" -d "{\"model\": \"${MODEL}\", \"prompt\": \"Say hello.\", \"max_tokens\": 16}")
    echo "${R}" | grep -q "\"model\":\"${MODEL}\"" && echo "${R}" | grep -q "\"choices\"" \
      && echo "OK: ${MODEL} served through the router" \
      || { echo "FAIL: ${R}"; exit 1; }'

Driving It with a Coding Agent

This deployment ships ready-to-use client configs for two coding agents, both pre-pointed at the served model. First, port-forward the router's OpenAI-compatible endpoint to localhost:8000 (the EPP service exposes it on port 80):

kubectl port-forward -n ${NAMESPACE} service/${GUIDE_NAME}-epp 8000:80

Claude Code — source the environment file (claude.env) and launch:

source ${REPO_ROOT}/guides/models/${GUIDE_NAME}/modelserver/gpu/vllm/claude.env && claude

opencode — point OPENCODE_CONFIG at the provided config (opencode.json) and launch:

OPENCODE_CONFIG="${REPO_ROOT}/guides/models/${GUIDE_NAME}/modelserver/gpu/vllm/opencode.json" opencode

Benchmarking

This guide comes with an inference-perf benchmark preset (defined in inference-perf.yaml) designed for agentic code-generation workloads with multi-turn interactions and tool usage. The configuration parameters include:

Workload Characteristic	Metric / Distribution Type	Min	Max	Mean / Constant	Std Dev	Description
Shared System Prompt	Constant	-	-	3,000 tokens	-	Common base instructions, libraries, and API schemas shared across all agent instances. Highly cacheable.
Dynamic System Prompt	Lognormal	10,000	990,000	160,000 tokens	233,600	Repository context, file indexes, and user-specific code context. Large and variable context.
Turns per Conversation	Lognormal	1	3,000	540 turns	48,600	The depth of the agentic reasoning/conversational loop. Multi-turn interactions require sustaining long-lived sessions.
Input Tokens per Turn	Lognormal	100	10,000	1,500 tokens	1,200	Ongoing prompt extensions (e.g., test logs, user follow-ups, modified code blocks) during conversation.
Output Tokens per Turn	Lognormal	50	10,000	425 tokens	825	Model generations per turn, which are generally smaller than inputs but can spike when generating large files.
Tool Call Latency	Lognormal	1 sec	100 sec	15 sec	55 sec	Simulated delay for external tool execution (e.g., running tests, linting, or shell commands) between turns.

1. Run the Benchmark

inference-perf.yaml runs an inference-perf job that replays the workload above against the ${GUIDE_NAME}-epp Service. Set the per-run parameters, render it, and apply it:

# Benchmark parameters. CONCURRENCY_LEVEL is the number of concurrent coding sessions
# to drive; NUM_REQUESTS is fixed at 20 per session; SEED is varied per concurrency level
# so prompts don't overlap across runs (matches the published results below).
export CONCURRENCY_LEVEL=40
export NUM_REQUESTS=$((20 * CONCURRENCY_LEVEL))
export SEED=$((7 + CONCURRENCY_LEVEL))

kubectl delete job inference-perf -n ${NAMESPACE} --ignore-not-found
envsubst < ${REPO_ROOT}/guides/models/${GUIDE_NAME}/inference-perf.yaml | kubectl apply -n ${NAMESPACE} -f -

2. Collect the Results

Follow the job's logs until it completes:

kubectl logs -n ${NAMESPACE} job/inference-perf -f

Benchmark Results

The results below are with 8 replicas of H200 GPU on the benchmark workload described above. Scaling concurrency up to 80 sessions.

Summary with 60 concurrent coding sessions

Metric	k8s Service	llm-d-optimized	Δ Improvement
TTFT P50 (ms)	49462	20543	⬇️ 58%
Total tokens / sec	64958	67645	⬆️ 4%
Input tokens / sec	64474	66716	⬆️ 3%
Output tokens / sec	484	929	⬆️ 92%

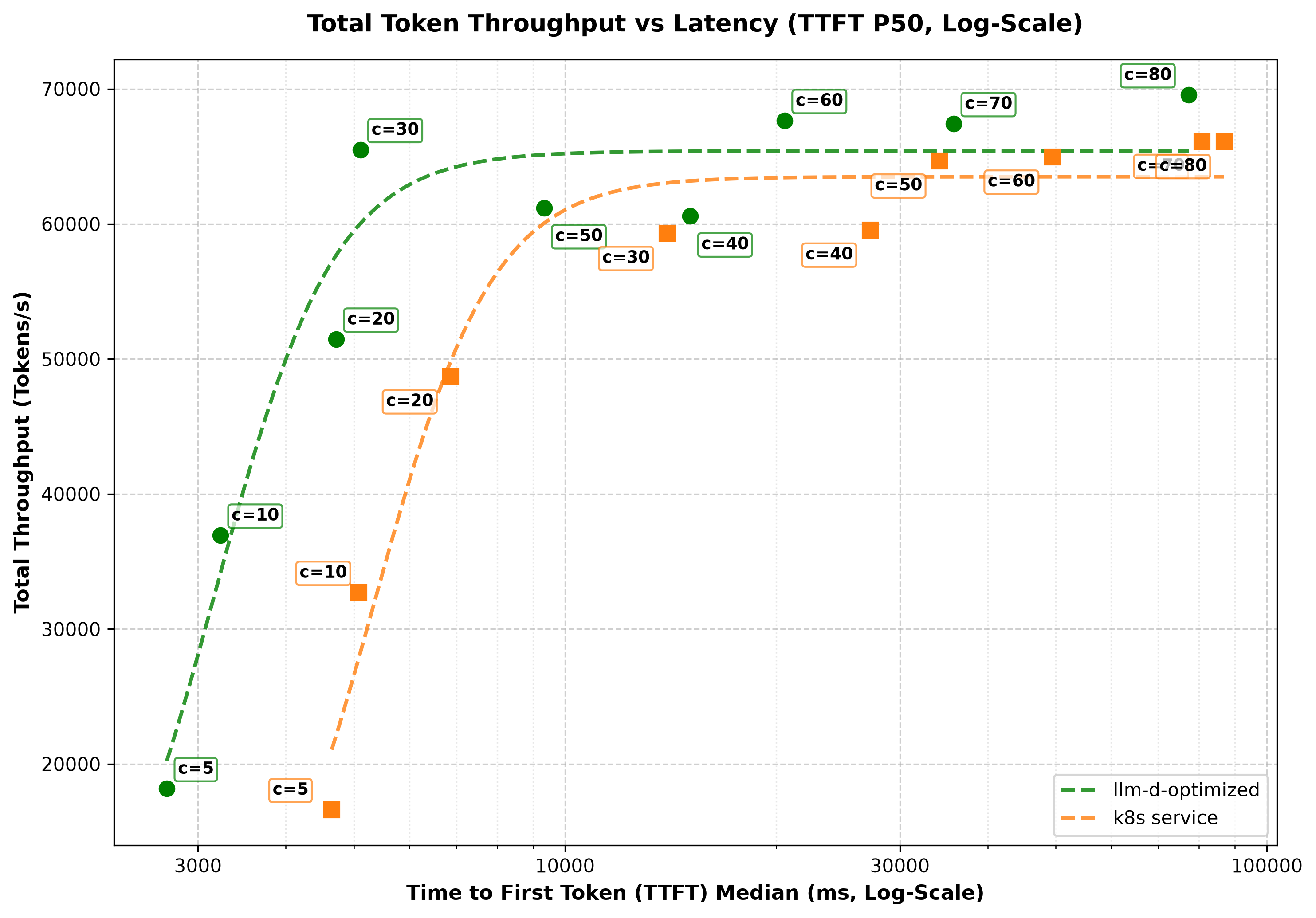

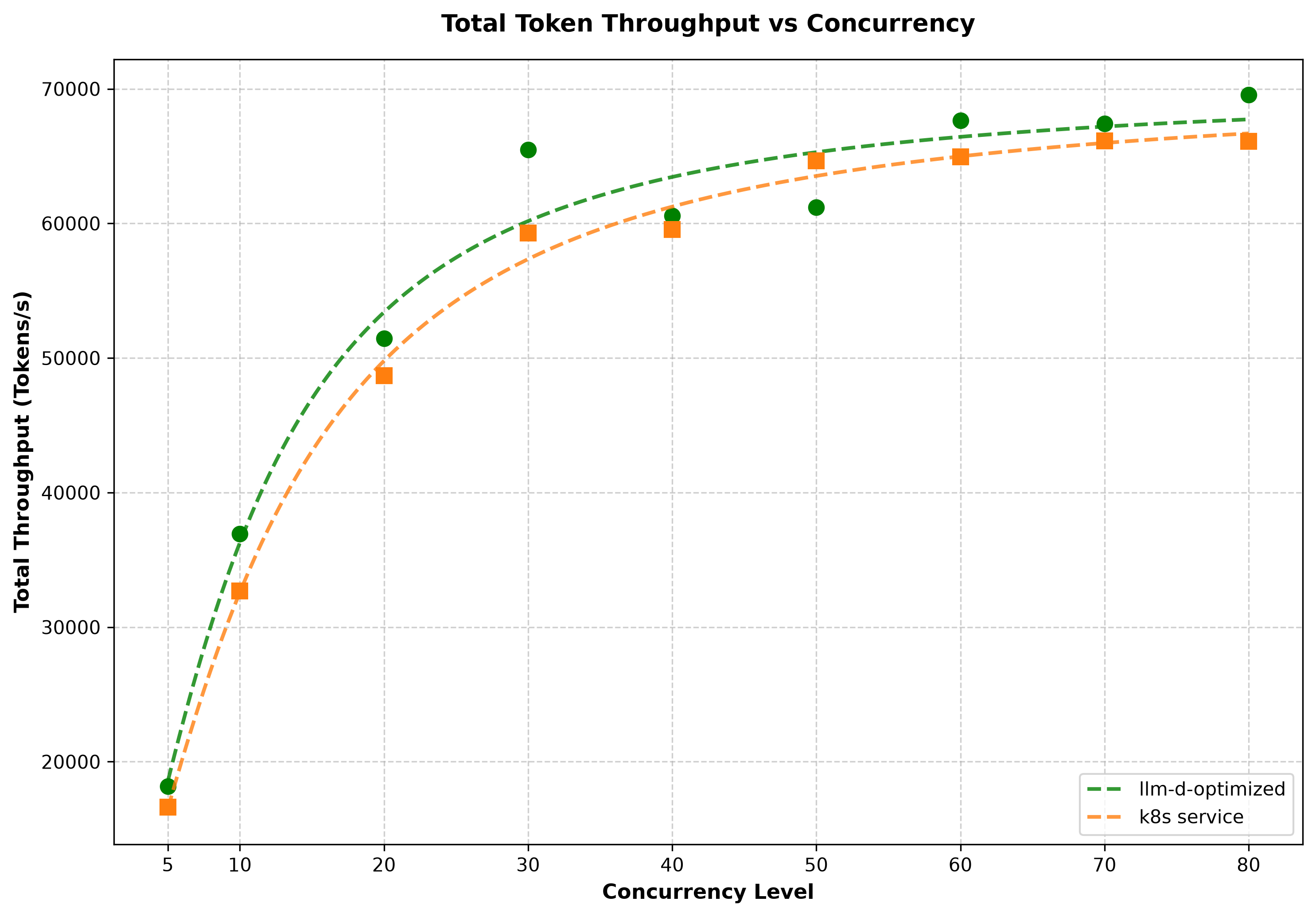

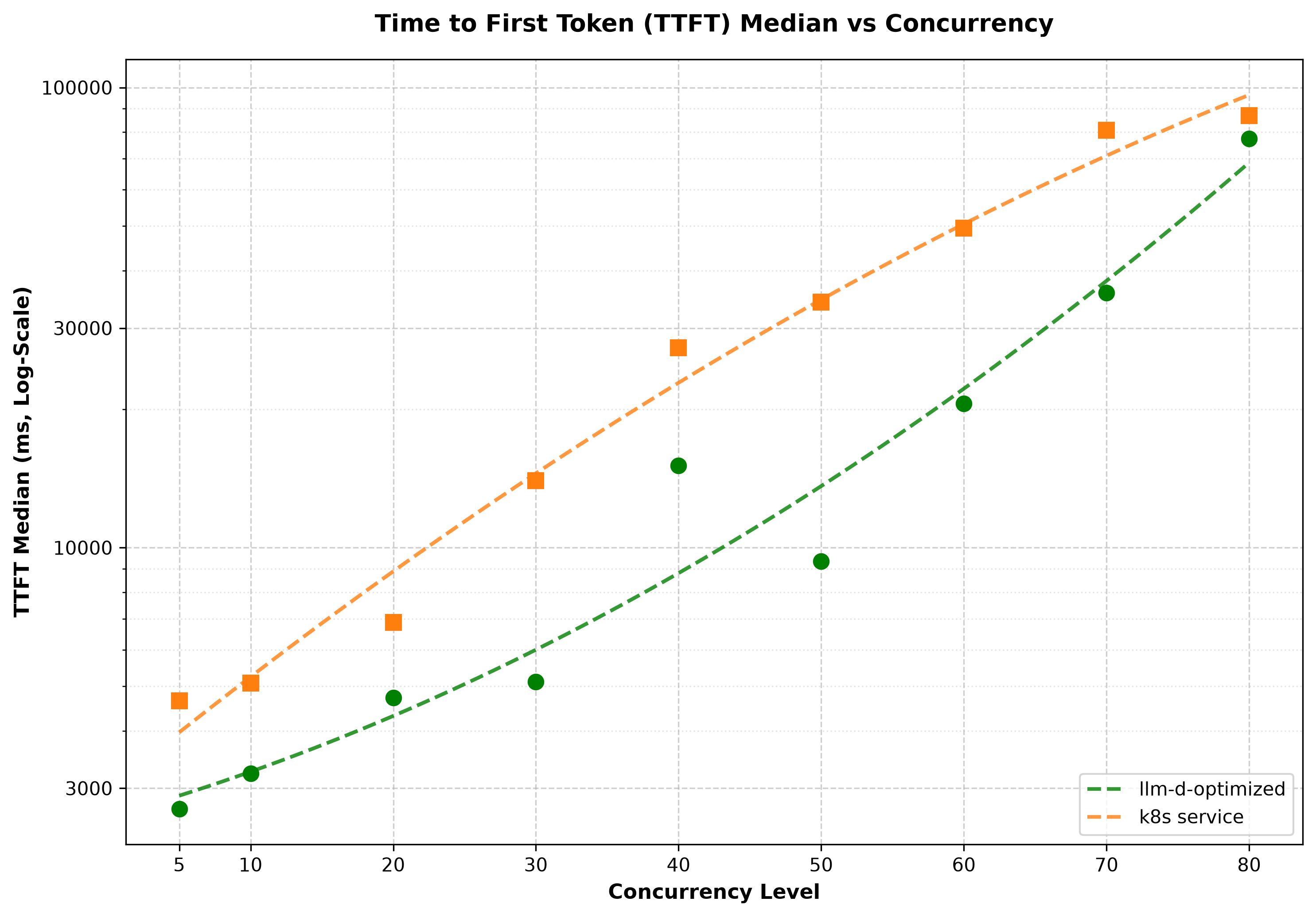

Latency Profiles

Cleanup

To remove the deployed components:

kubectl delete -n ${NAMESPACE} -k ${REPO_ROOT}/guides/models/${GUIDE_NAME}/modelserver/${ACCELERATOR_TYPE}/${MODEL_SERVER}/${INFRA_PROVIDER}/

helm uninstall ${GUIDE_NAME} -n ${NAMESPACE}

kubectl delete -n ${NAMESPACE} -k ${REPO_ROOT}/guides/recipes/modelserver/components/monitoring-pd --ignore-not-found=true

kubectl delete namespace ${NAMESPACE}
